Cronus
Description

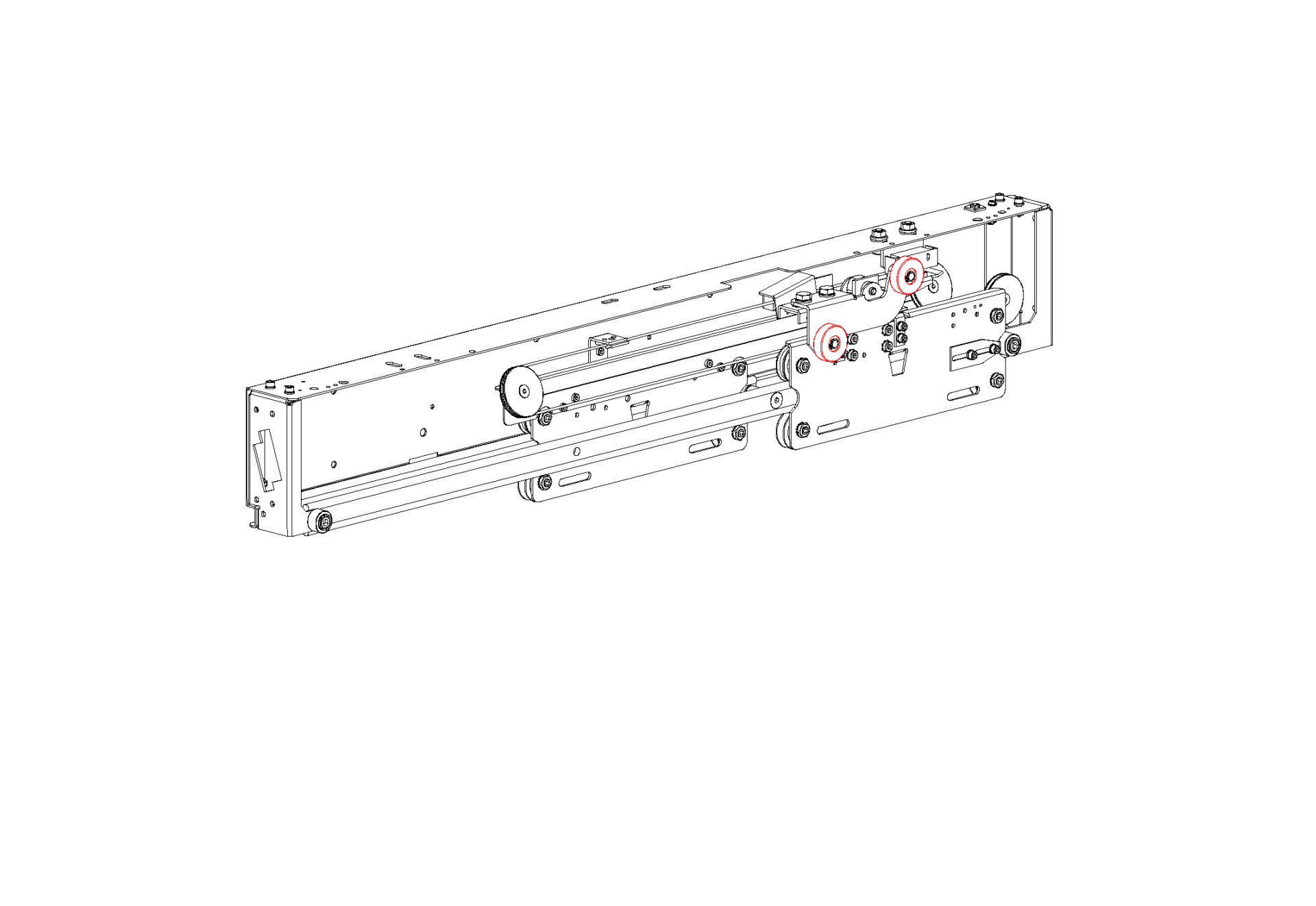

Cronus automatic doors are suitable for applications where durability is the primary concern. During the installation there is great flexibility due to the fully adjustable panels. Cronus doors are suitable for use on elevators of heavy load and large door openings. They are available with reinforced sill.
Sliding Landing Doors Cronus compliance with EN81-20.
Dimensions
| Model | Total Height | Sill Width | Frame Width | Clear Opening |
| Cronus 2PT | 2275 (2295*) | 90 | 55 | 650 – 1500 (700 – 1300)* |
| Cronus 2PC | 2275 (2295*) | 45 | 85 | 650 – 1500 (700 – 1300)* |
| Cronus 3PT | 2310 | 135 | 55 | 700 – 1500 |
| Cronus 4PC | 2310 | 90 | 55 | 800 – 2000 |
| Cronus 6PC | 2310 | 135 | 55 | 2200 – 3000 |
*EN 81-58
Panels Compatibility
| Model | Panels Adjustment | Glass Panels | Full Glass Panels | Reinforced Sill |
| Cronus 2PT | High Flexibility (fully adjustable) | ✔* | ✔ | ✔ |
| Cronus 2PC | High Flexibility (fully adjustable) | ✔* | ✔ | ✔ |
| Cronus 3PT | High Flexibility (fully adjustable) | ✔ | ✖ | ✔ |
| Cronus 4PC | High Flexibility (fully adjustable) | ✔ | ✖ | ✔ |
| Cronus 6PC | High Flexibility (fully adjustable) | ✔ | ✖ | ✔ |
*EN 81-58
Versions
| Model | Low Uper Frame | Without Frame | Mpms Metron | EN 81-58 Typical Panels | ΕΝ 81-58 Glass Panels |
| Cronus 2PT | ✔* Min 100 | ✔ | ✔* | E120/EI120/EW60 | E120/EW30 |
| Cronus 2PC | ✔* Min 80 | ✖ | ✔* | E30/EI30/EW30 | E120/EW30 |
| Cronus 3PT | ✔* Min 100 | ✖ | ✖ | ||
| Cronus 4PC | ✔* Min 100 | ✖ | ✖ | ||
| Cronus 6PC | ✖ | ✖ | ✖ |
*EN 81-58
