Luna 2.0
Description
Luna automatic doors is the ideal solutions in renovation projects where shaft space is limited. In specific, with its reduced sill and frame dimensions, allows for a larger available shaft depth. Its panels are semi-adjustable, resulting to shorter installation time.
Additional Features:
- Use of Switch Mode Power Supply
- USB port for easy software update
- On-Off main switch
- Real time clock and Fault history
- Charging and Checking of the batteries condition
- User friendly parameter menu with easy navigation through buttons
- Unique connection terminals for power supply, motor and all inputs/outputs
- Last generation microcontroller
- Fast connector terminals for the door safety contact
- Emergency evacuation procedure also by mechanical means
- Operating cycles per Year = 600.000
- Roller Dim (mm) = 48
Dimensions
| Model | Total Height | Sill Width | Cabin Front Entrance Return | Clear Opening |

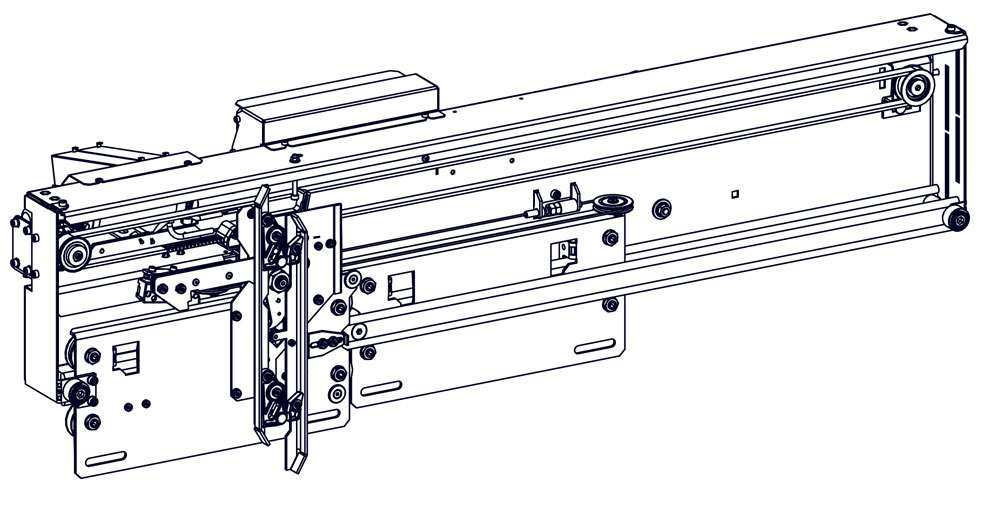

| Luna 2.0 – C* 2PT | 2390 | 90 | 50 | 650 – 900 |
| Luna 2.0 – C* 2PC | 2390 | 45 | 50 | 650 – 1000 |

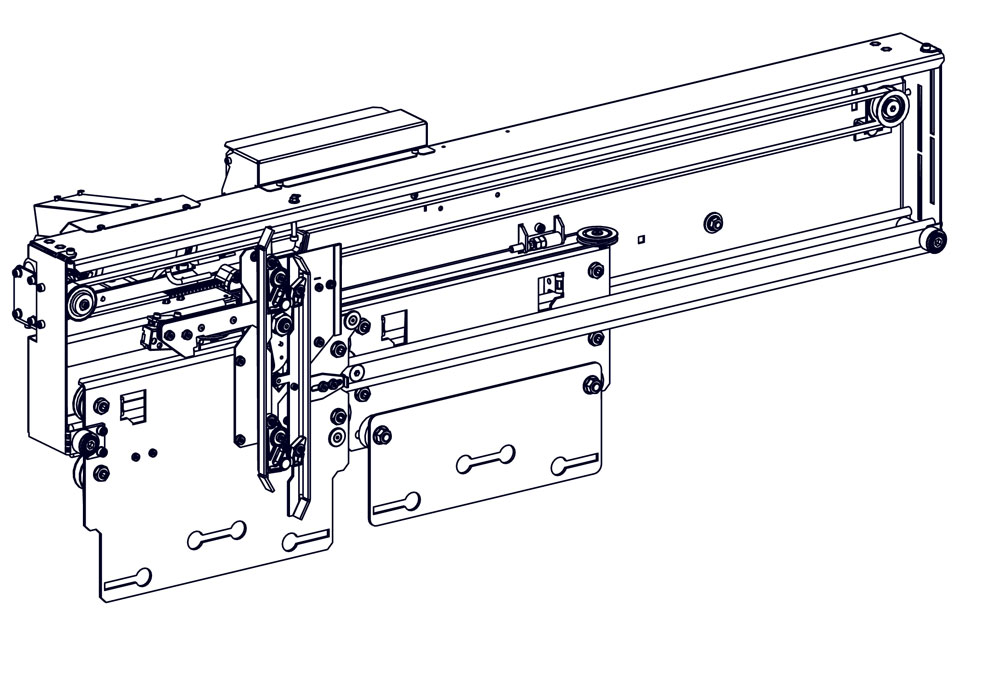

| Luna 2.0 – T* 2PT | 2390 | 60 | 50 | 650 – 900 |
| Luna 2.0 – T* 3PT | 2375 | 90 | 50 | 700 – 1000 |
| Luna 2.0 – T* 4PC | 2380 | 70 | 40 | 650 – 900 |
*Cronus Panels
*Terra Panels
Panels Compatibility
| Model | Panles Adjustment | Glass Panels | Full Glass Panels | Reinforced Sill |
| Luna 2.0 – C* 2PT | High Flexibility (fully adjustable) | ✔ | ✖ | ✔ |
| Luna 2.0 – C* 2PC | High Flexibility (fully adjustable) | ✔ | ✖ | ✔ |
| Luna 2.0 – T* 2PT | Easy & Fast Installation (standard adjustment) | ✖ | ✖ | ✖ |
| Luna 2.0 – T* 3PT | Easy & Fast Installation (standard adjustment) | ✖ | ✖ | ✖ |
| Luna 2.0 – T* 4PC | Easy & Fast Installation (standard adjustment) | ✖ | ✖ | ✖ |
*Cronus Panels
*Terra Panels
